The FineJoin D2480T is a premium, network-ready Industrial UHF RFID Reader designed for modern Industrial Ethernet architectures, such as smart manufacturing lines , automated roller conveyors , and AGV/robotic station positioning. It operates reliably in the 902–928 MHz band and natively supports ISO 18000-6C tag ICs (including NXP Ucode, Alien H3/H9, and Impinj M730) with an extended read/write range of up to 150 cm.

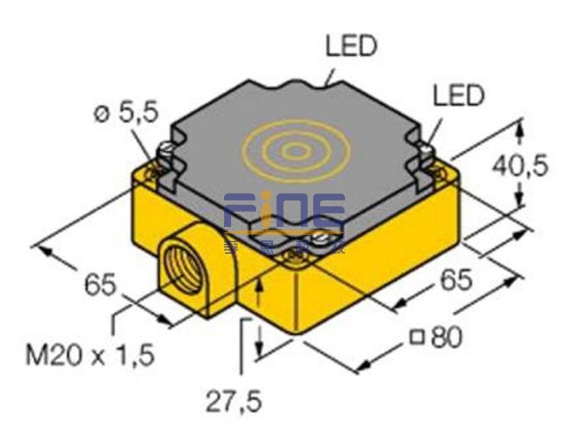

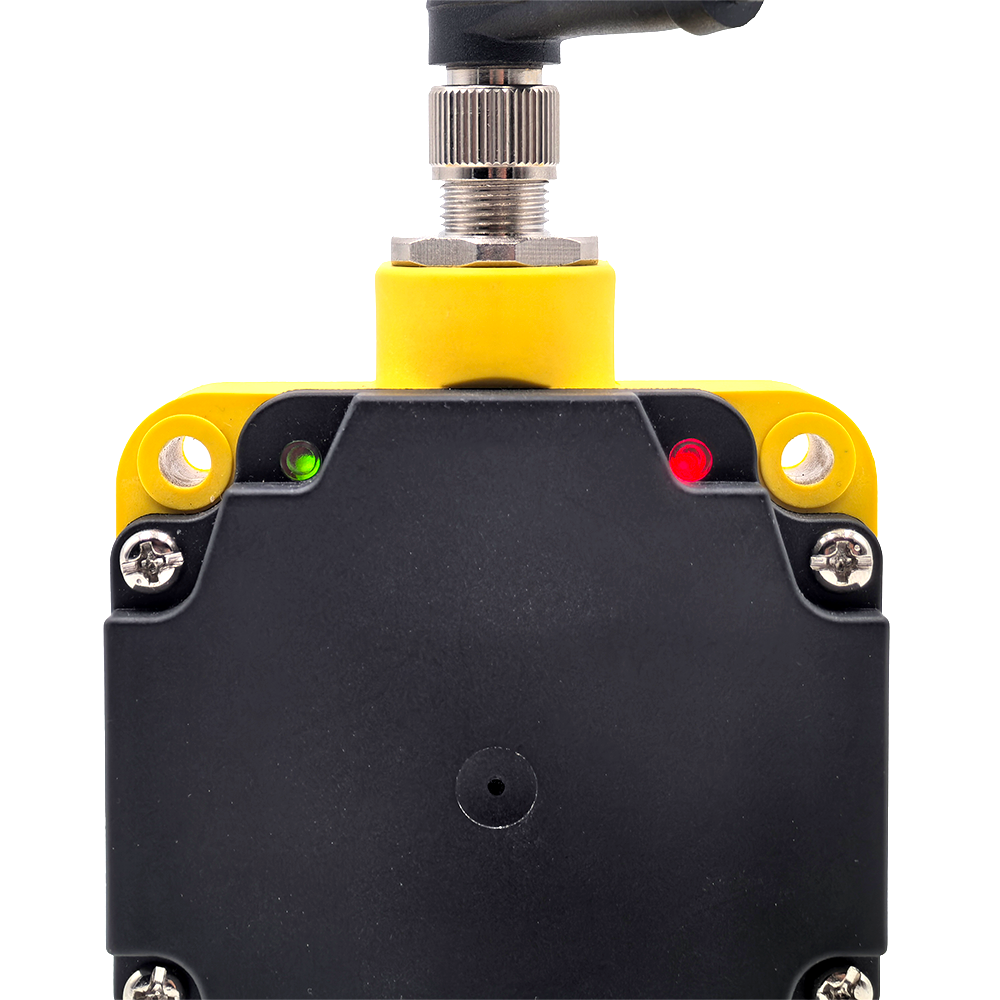

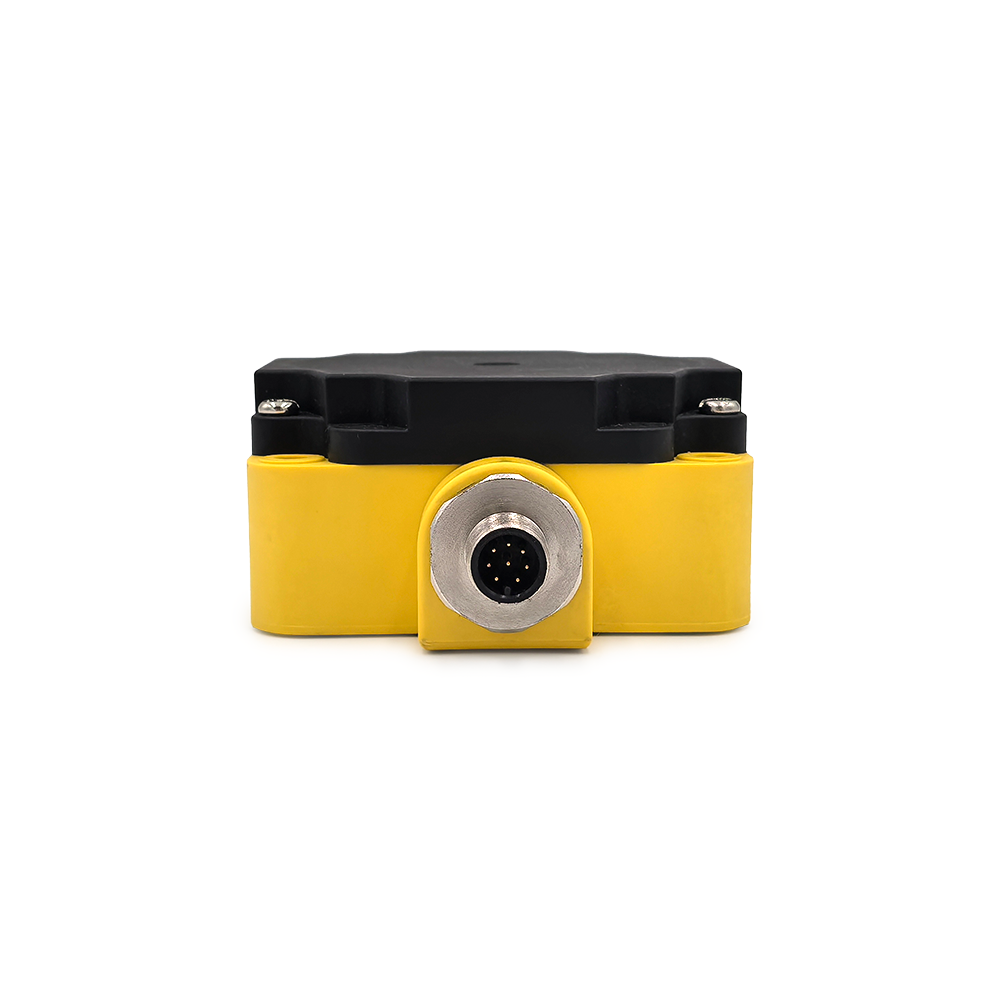

Equipped with an RJ45 communication interface running Modbus TCP protocol (10-100Mbps adaptive) , the D2480T seamlessly streams real-time field data into PLC networks or cloud-based MES software without requiring complex underlying RF programming. Hardware connectivity is established via a heavy-duty M12 A-coded 8-pin male connector , offering dual power options: standard DC 12-30V or Power over Ethernet (PoE) for single-cable deployments. Encased in a highly durable, compact IP67 ABS enclosure (80mm x 80mm x 40.5mm) with dual-LED status diagnostics , it guarantees exceptional stability against industrial electrical transient surges (4 kV) , strong vibrations , and extreme storage temperatures (-40 °C to +85 °C).
