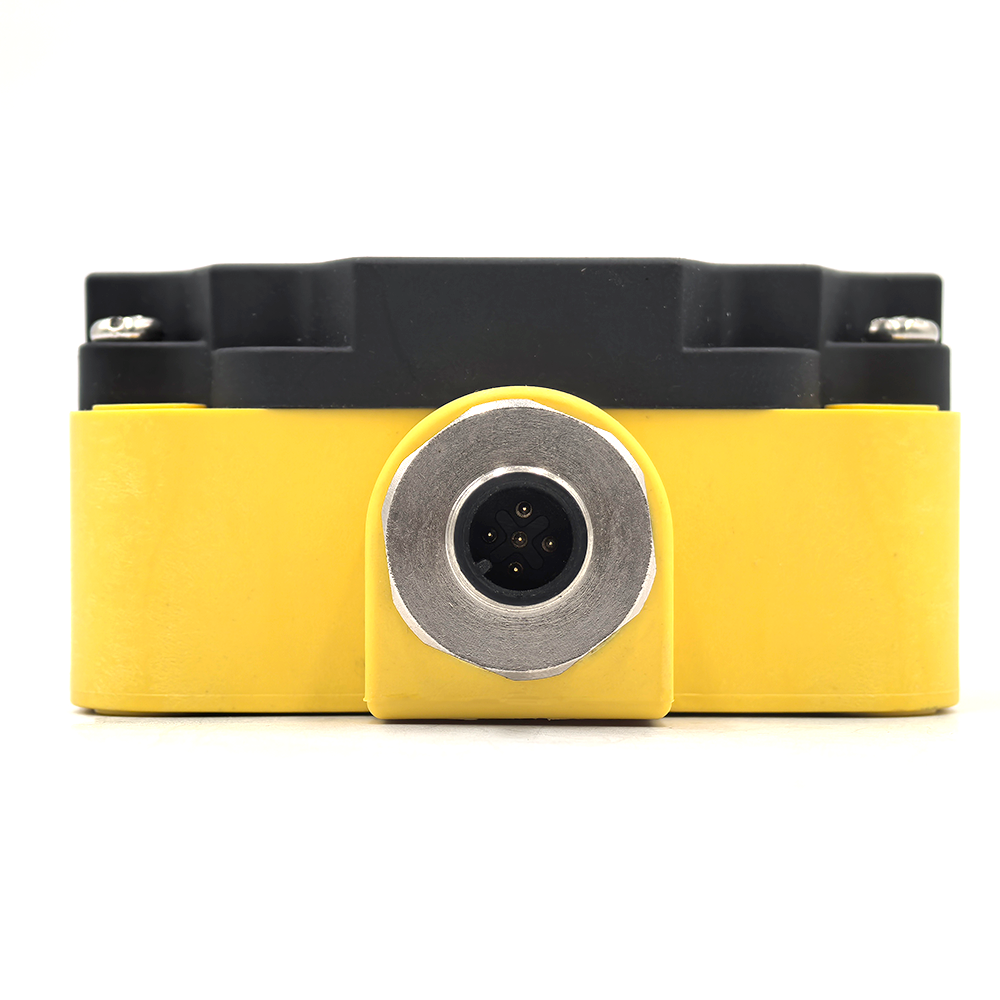

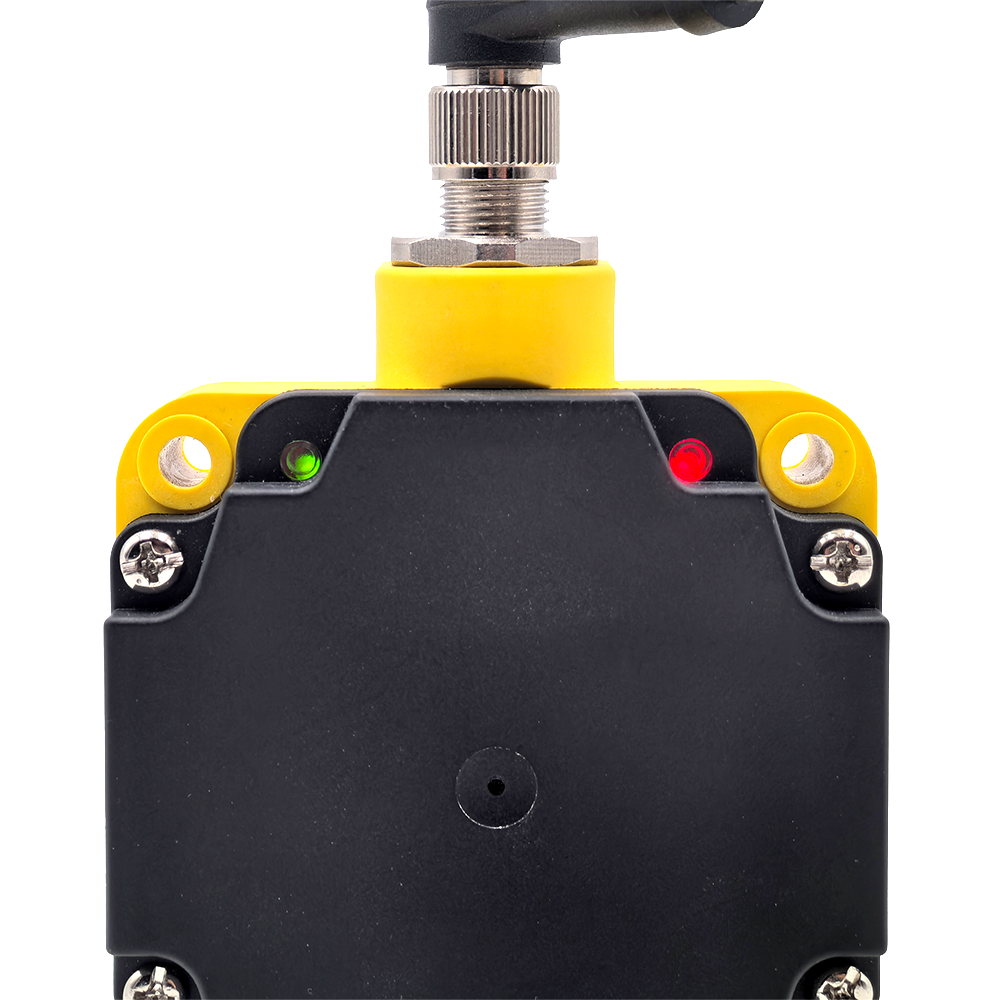

The FineJoin D1604R is a high-performance 13.56 MHz HF RFID reader designed for point-to-point data transmission via standard RS485. Built to withstand harsh industrial environments, this compact 80mm square reader supports ISO 15693 compliant transponders with a reliable sensing distance of 0 to 120 mm. Its integrated Auto-tuning mechanism guarantees stable transponder communication even when flush-mounted near metallic machine frames. The D1604R offers automation engineers maximum flexibility for custom software integration and legacy system retrofits.
- Protocol & Interface: Proprietary Protocol, RS485
- Operating Voltage: 9 to 30 V DC
- Protection Rating: Robust IP67
- Ideal Applications: Custom AGV tracking, tool identification, and PC-based testing benches
