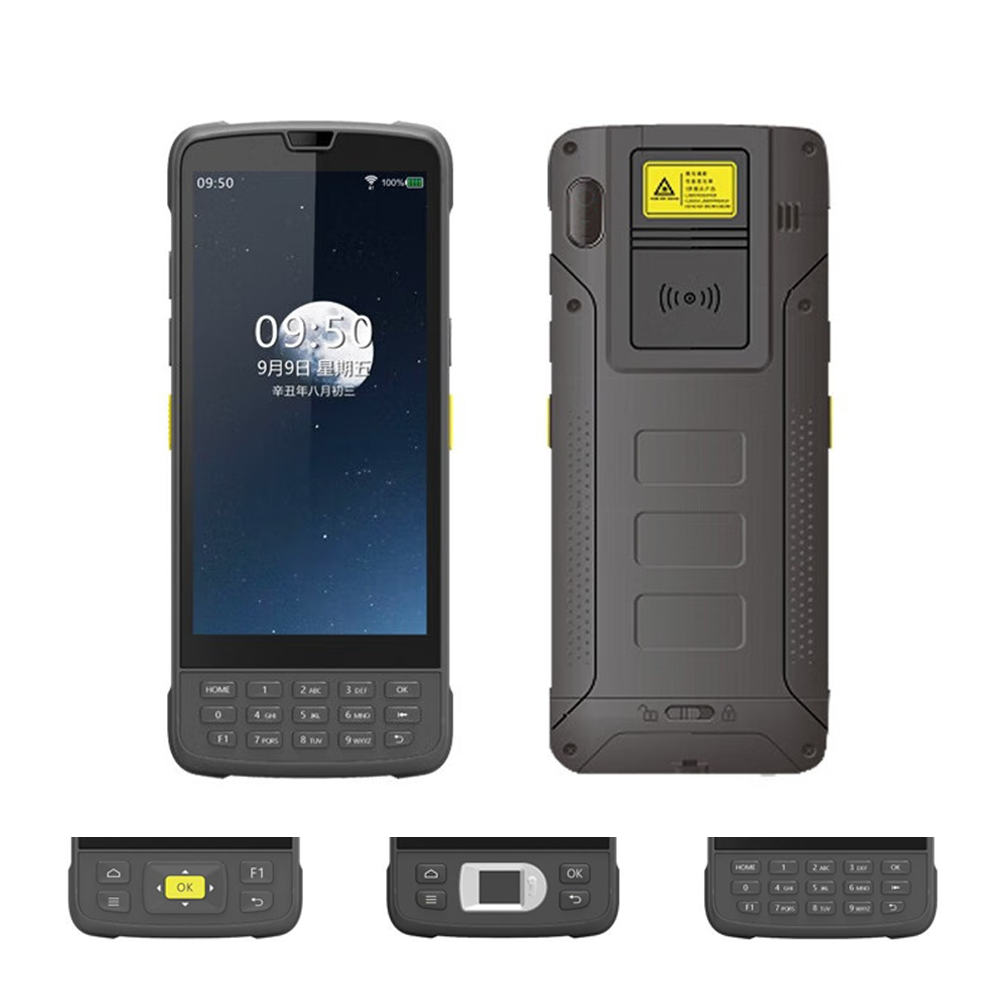

M12 Integrated Handheld RFID Reader: Next-Gen Asset Tracking & Data Capture
The FineJoin M12 is an industrial-grade Integrated Handheld RFID Reader designed to streamline enterprise asset tracking, warehouse inventory management, and supply chain logistics. Driven by a powerful MediaTek Octa-core 2.0GHz processor and running on Android 10, the M12 delivers low-latency data computation and seamless interaction with backend ERP systems.
At its core, the M12 features the high-performance Impinj E310 UHF RFID core engine, delivering an accurate, long-range bulk scanning capability of up to 5 meters (depending on tag and environment). It supports global tuned frequencies spanning 860MHz to 930MHz and is fully compatible with the ISO 18000-6C protocol.

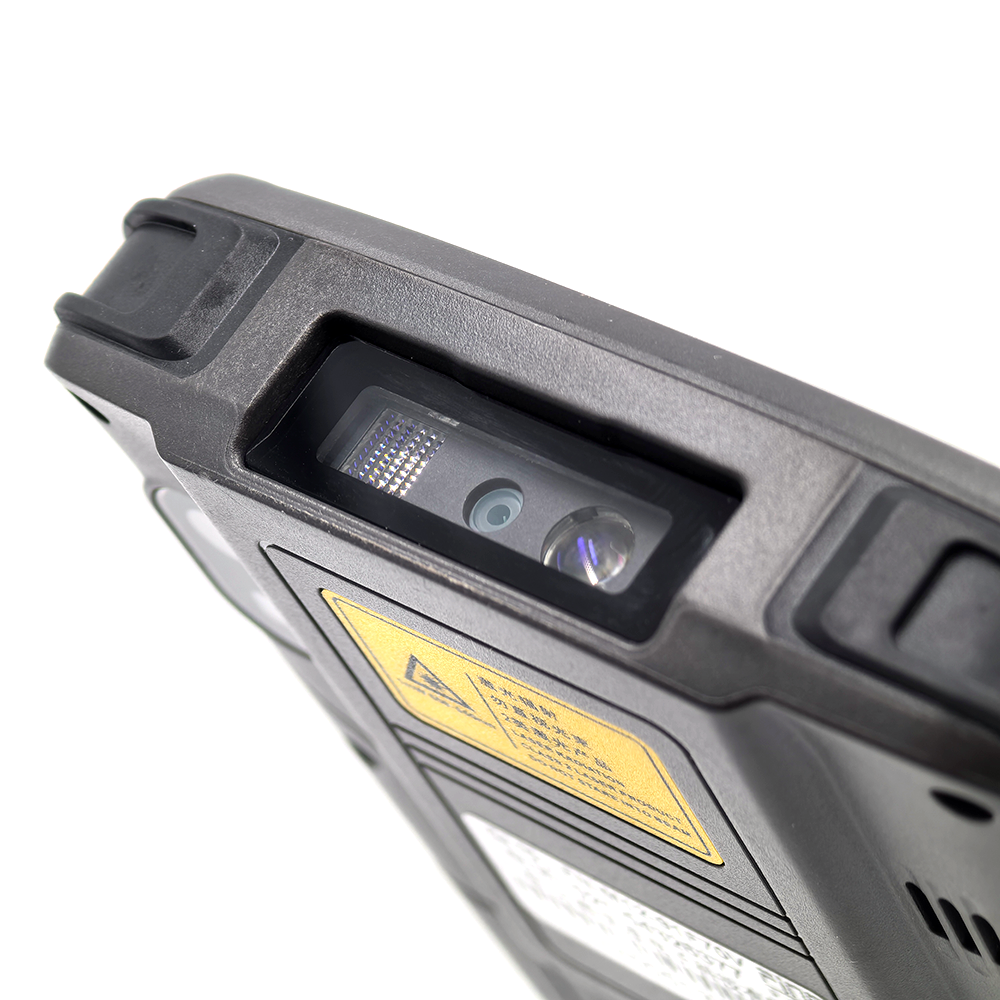

For unparalleled data precision, the M12 offers a dual scanning architecture. Hardware deployment teams can select between the Zebra SE4710 1D/2D imager for rapid multi-label pick lists or the Honeywell 2D soft-decoding engine for high-tolerance movement tracking. Built for endurance during double-shifts, the device is equipped with a 5000mAh removable Li-ion battery, an 18W PE fast-charging protocol, and a high-brightness 5.45" FHD+ IPS display optimized for daylight legibility.
Key Technical Specifications:
- RFID Engine: Impinj E310 UHF RFID (up to 5m read range) & Integrated 13.56MHz NF
- Barcode Scanning: Zebra SE4710 / Honeywell 2D Soft Decoding Options
- Durability: Robust IP65 Industrial Protection Rating with 0 ℃ to 50 ℃ Operating Limits
- Connectivity: 4G LTE All-Network Coverage, Dual-Band Wi-Fi (2.4G/5G), and Bluetooth 5.0
- Biometrics: Optional TZ Optical Fingerprint Module (508 DPI)
