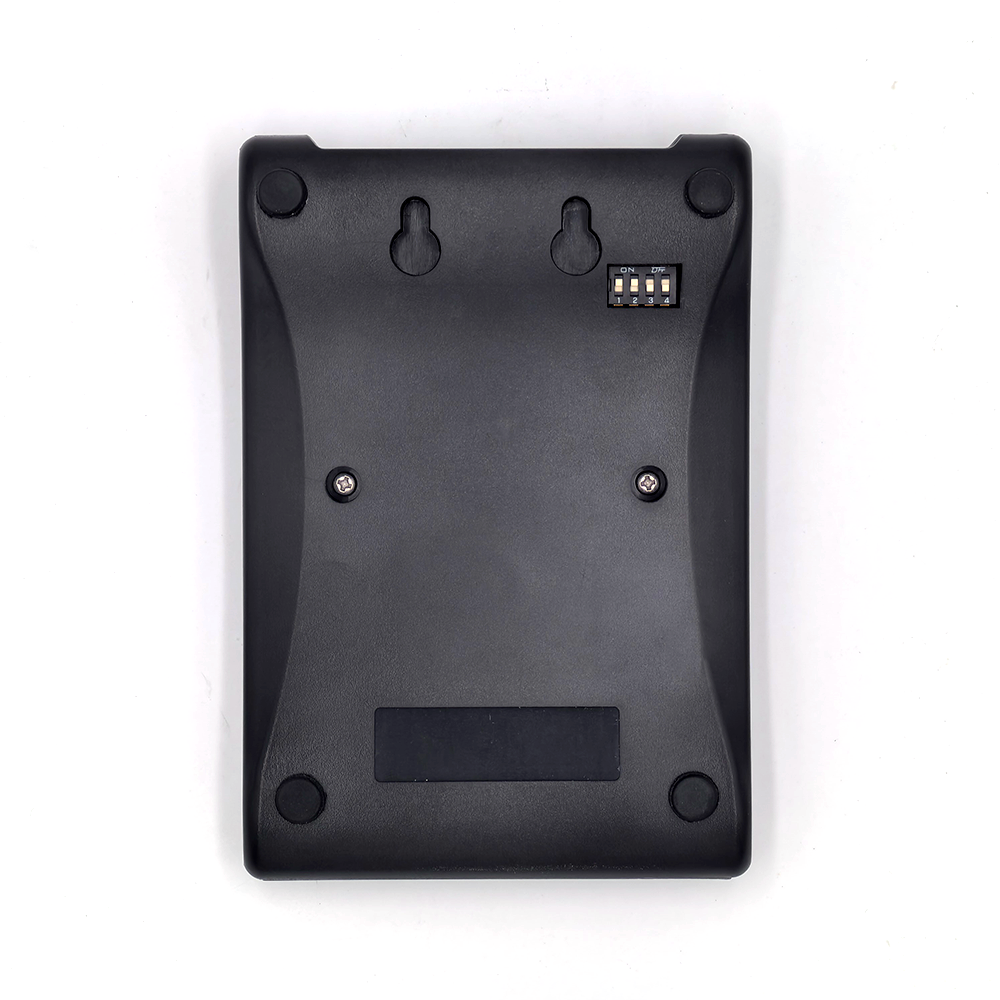

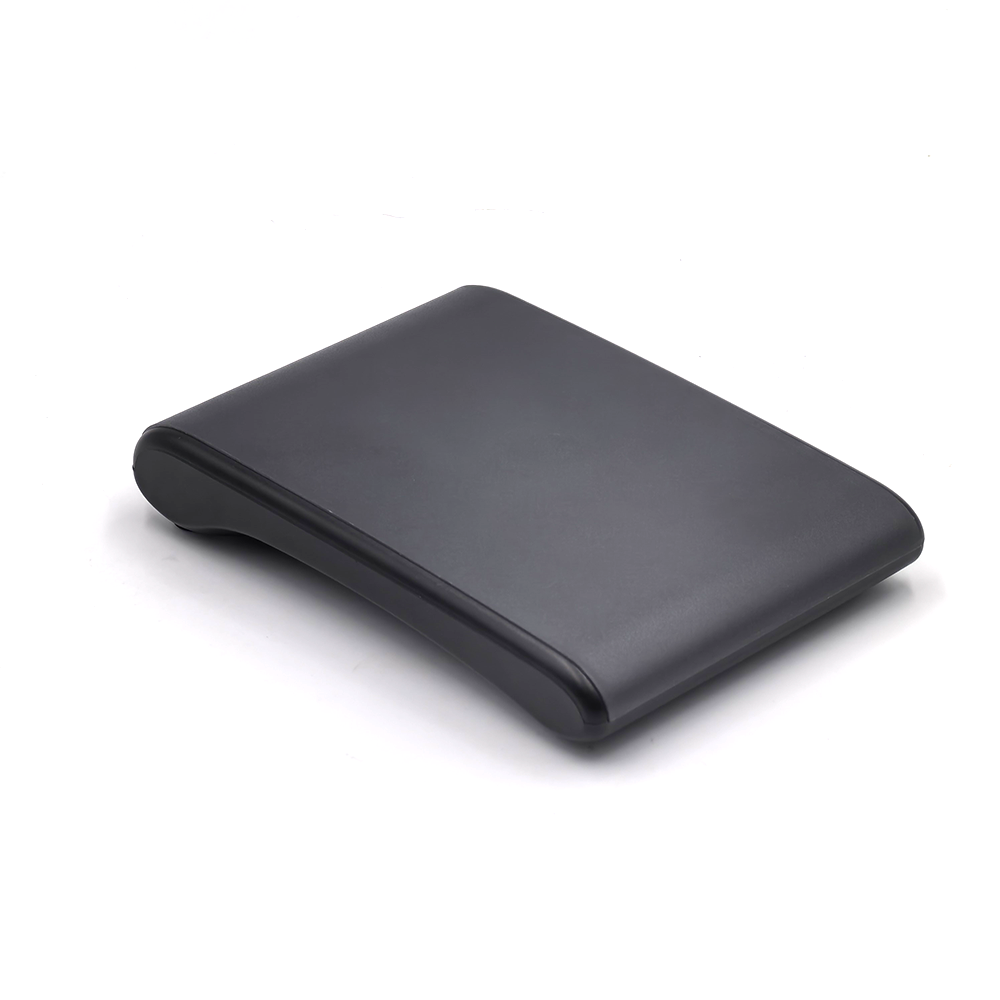

The FineJoin D2180D is a rugged, low-power UHF RFID Desktop Reader / Writer / Encoder engineered for seamless industrial system integration and automated workflows. Fully compliant with ISO 18000-6C & EPC C1G2 protocols, the device bridges edge data acquisition with enterprise middleware via multiple hardware interfaces, making it the ideal plug-in component for modern production management.
- Multi-Protocol Connectivity: Native support for RS232 serial communication, Wiegand 26/34, and USB 2.0 (Virtual COM Port) interfaces for direct interface with PLCs and access control panels.
- Hardware Execution: Equipped with a standard 8-Pin Phoenix plug-in terminal block for industrial wiring; supports USB bus power or an independent external +9V DC power supply.
- High-Density Batch Reading: High-speed anti-collision tracking algorithm decodes >50 tags/second within a 10cm to 80cm proximity zone (built-in 0 dBi antenna; 2 dBi circular polarization antenna optional).
- Industrial Reliability: Thermal-optimized engineering ensures zero heat generation during long-term continuous full-load operations across temperatures from -10°C to +60°C.
- Target Applications: Optimized for intelligent warehouse logistics, automated conveyor tracking, AGV orientation, asset issuance, and smart production lines (MES/WMS).
