FineJoin D2181B | Industrial-Grade Impinj E Series Integrated UHF RFID Reader & Gateway
The FineJoin D2181B is an enterprise-grade, multi-protocol integrated UHF RFID reader engineered for harsh operational environments and high-capacity automatic identification workflows. Powered by the high-performance Impinj E Series RF engine and integrated with an 8 dBi circular polarized antenna, the D2181B delivers reliable, orientation-insensitive tag reading up to 10 meters at an ultra-fast processing speed of up to 650 tags/second.

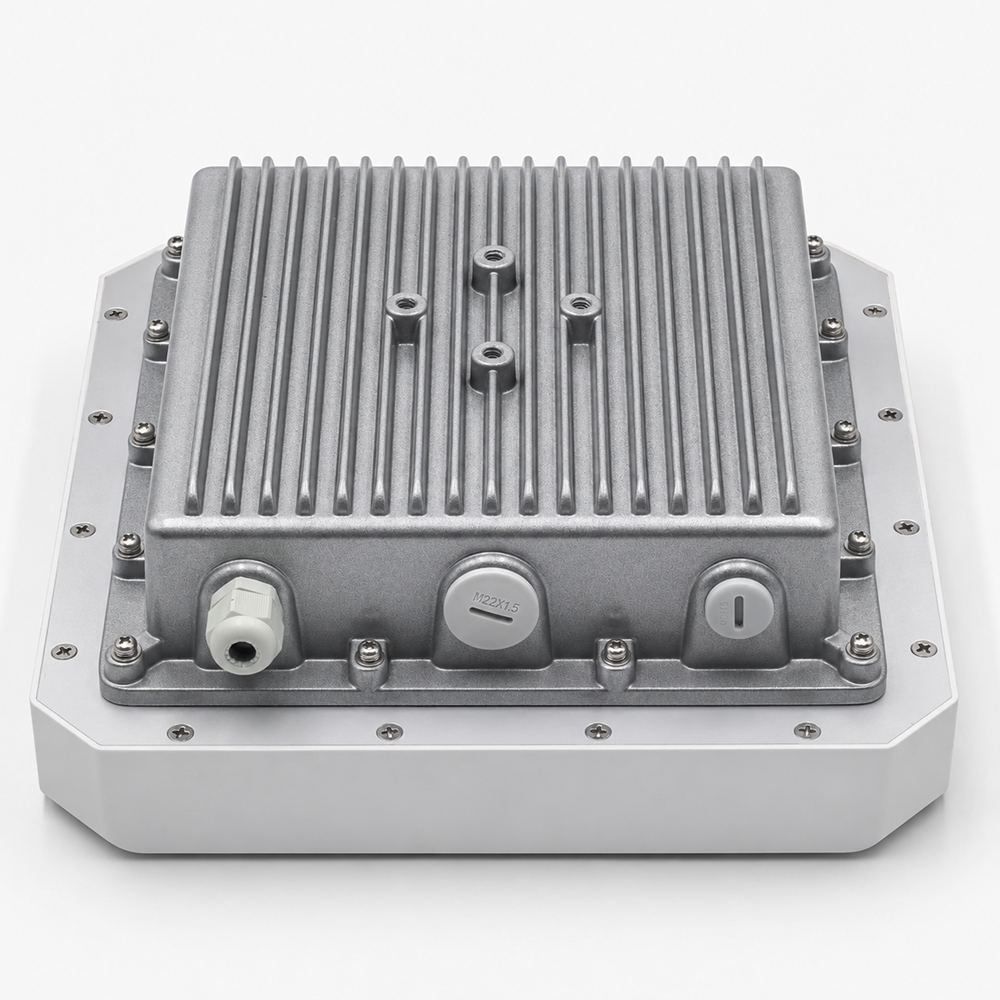

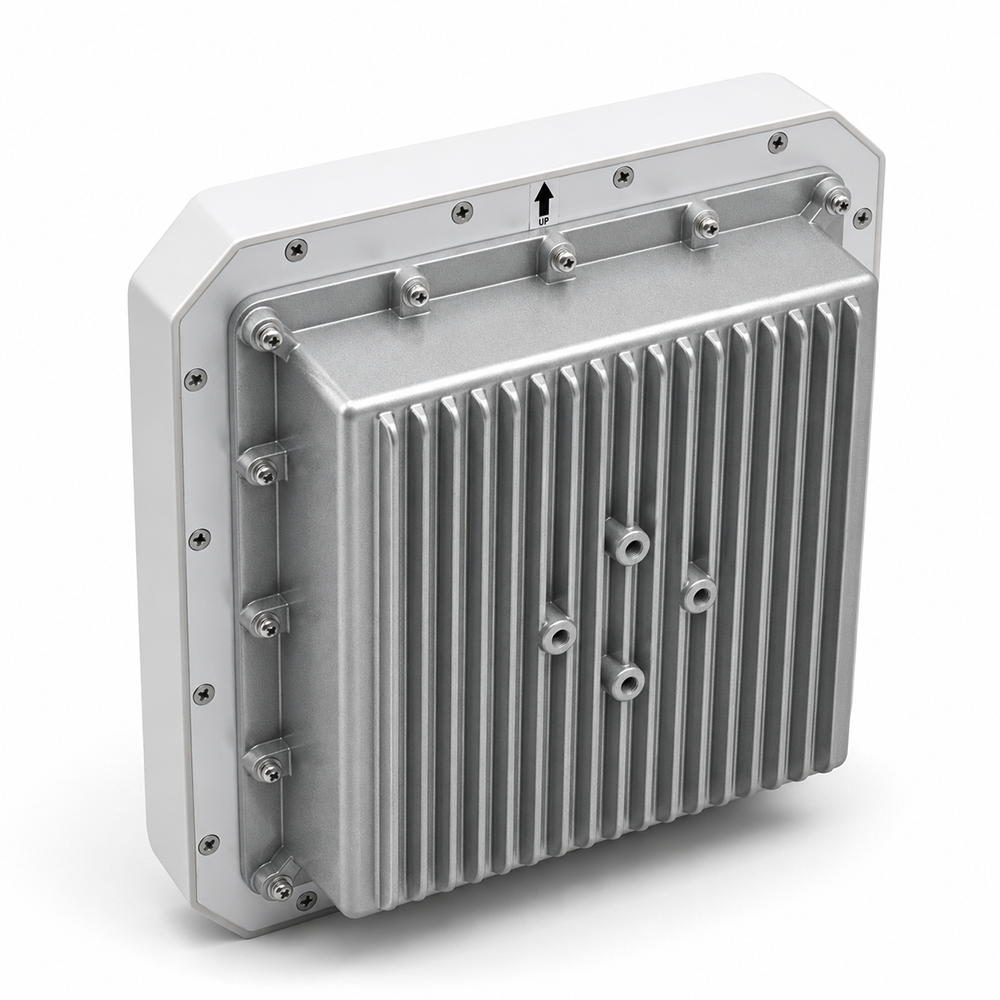

Housed in a robust, dust-tight, and waterproof IP67-rated enclosure, this heavy-duty terminal supports software-configurable output power from 0 to 33 dBm, ensuring exceptional coverage control. The reader boasts cross-generation standards compliance, supporting both ISO 18000-6C (EPC Class 1 Gen 2) and ISO 18000-6B protocols. Outfitted with natively integrated TCP/IP (RJ45), RS232, and RS485 communication interfaces, along with a versatile 12-pin cable interface offering 2-channel isolated inputs and 2-channel relay outputs (GPIO), the D2181B is the ultimate hardware infrastructure for customs intelligent clearance, highway electronic toll collection (ETC), and automated warehouse logistics tracking.
